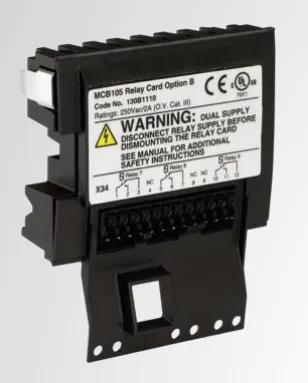

Danfoss VLT Relay Card MCB 105

Makes it possible to extend relay functions

with 3 additional relay outputs.

• Max switch rate at rated

load/min. load ……………….6 min-1/20 sec-1

• Protects control cable connection

• Spring-loaded control wire connection

Max. terminal load:

• AC-1 Resistive load………………240 V AC 2 A

• AC-15 Inductive load

@cos phi 0.4 ………………… 240 V AC 0.2 A

• DC-1 Resistive load ….…………… 24 V DC 1 A

• DC-13 Inductive load

@cos phi 0.4 ………………… 24 V DC 0.1 A

Min. terminal load:

• DC 5 V……………………………………………….10 mA
