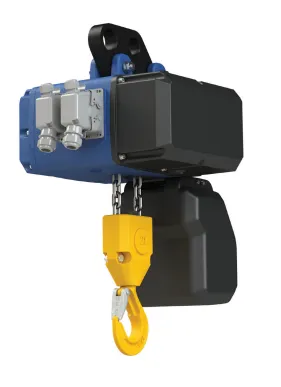

Elektrisk Kättingtelfer CLF–E 250kg

Ange önskad lyfthöjd och matningsspänning vid offertförfrågan

Leveranstid ca 1 vecka.

Capacity 125 kg to 2000 kg

Lifting Speeds, Type Double

Main Lifting Speeds, m/min From 4 to 8 m/min

Electric Motor Cylindrical 3-phase Motor

Electric Motor Fan No

Operating Voltage 380–415 V / 50 Hz

Hoist Brake 85/95 V DC Electro-magnetic

Low Voltage Panel Yes

Control Voltage 24 V (Optional 48 V, 240 V, etc)

Gear-box Helical

FEM Group 1 Am, 2 m

Number of Starts per Hour 180 to 240

Duty Cycle 10+30% or 15+40%

IP Protection IP55

Overload Limiter Slipping Clutch

End Switch for Lifting Optional*

Chain Type Galvanized, Class DAT, EN818-7

Chain Size 2 Types

Chain Container 2 Types (Plastic)

Electric Trolley Speed, m/min 20/5, 20, 10

Push Trolley Yes

Top Hook Yes

Operating Temperature –10 / +40 °C
