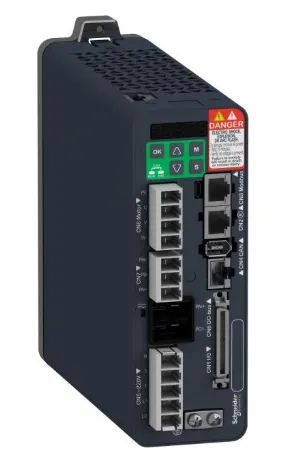

Schneider Electric Lexium 28 LXM28AU04M3X

motion servo drive, Lexium 28, single and three phase, 200 to 240V, 400W

Degree of protection (IP)

IP20

Depth

146 mm

Height

150 mm

Integrated breaking resistance

+

Mains frequency

50/60 Hz

Mains voltage

220 .. 220 V

Max. output at linear load at rated output voltage

0.4 kW

Max. output at quadratic load at rated output voltage

0.4 kW

Max. output frequency

16 Hz

Max. output voltage

240 V

Nominal output current I2N

2.6 A
