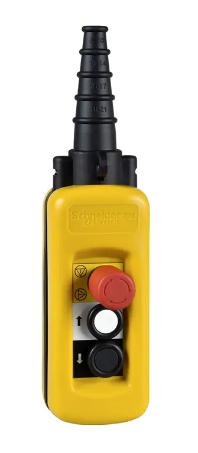

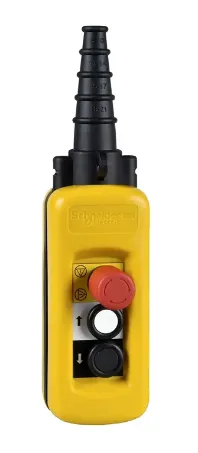

Schneider Electric manöverdon XACA2813

Hängmanöverdon

3 tryckknappar inkl. nödstopp

1 hastighet

Kontakter per tryckknapp: 1 x NO/1 x NC

Nödstoppskontakt: 1 x NC

För styrkretsar

Med mekanisk förregling

Colour housing cover

Yellow

Degree of protection (IP)

IP65

Degree of protection (NEMA)

13

Depth

107 mm

Height

314 mm

Material housing

Plastic

Material quality housing

Other

Number of command positions

2

Number of speeds

1

Quality class of housing material

Other

Rated operation current Ie at AC-15, 600 V

1.2 A

Suitable for emergency stop

+

Type of executable motions

Lift

Width

80 mm
