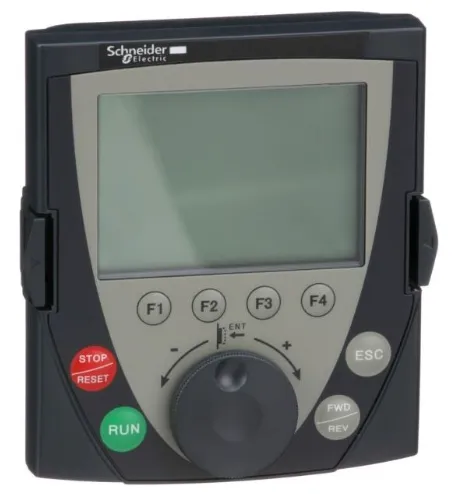

Schneider Electric Operatörspanel VW3A1101 (ATV71)

Grafisk display, Altivar, grafisk display för skåpsmontage passande frekvensomriktare Altivar, 240 x 160 pixels, IP54

This remote terminal is an option for variable speed drives of Altivar range. It is a dialogue option for the variable speed drive. Its protection index is IP54. This terminal is used to locate the Human-Machine Interface of the Altivar drive remotely on the door of an enclosure. Its maximum operating temperature is 50 °C. It provides a pixel resolution of 240 x 160 pixels. It weighs 180g. It is used to control, adjust and configure the drive, display the current values (motor, input/output values, etc), save and download configurations, 4 configuration files can be saved. A remote-mounting cordset VW3A1104Rxx is also required, to be ordered separately.

Net Weight

0.29 kg

Height

70 mm

Length

170 mm

Sustainability

+

Width

235 mm
