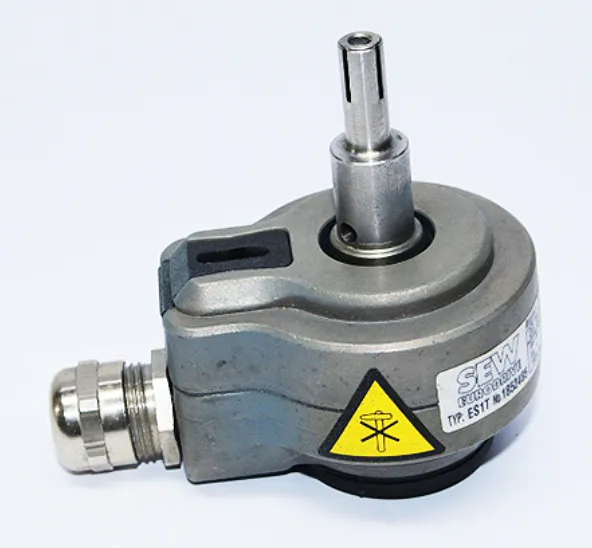

SEW-Eurodrive Pulsgivare OG72DN1024TTL (ES1T)

Key Specifications

Encoder Type: Incremental rotary encoder​

Resolution: 1024 pulses per revolution (PPR)​

Output Signal: TTL-compatible quadrature signals (A, B, Z) with complementary inverted signals (A̅, B̅, Z̅)​

Supply Voltage: 5 V DC​

Shaft Type: Solid shaft designed for direct mounting on SEW motors

Protection Class: IP66, suitable for harsh industrial environments​

Electrical Connection: Typically provided with a radial cable​

Weight: Approximately 0.86 lbs (0.39 kg)
