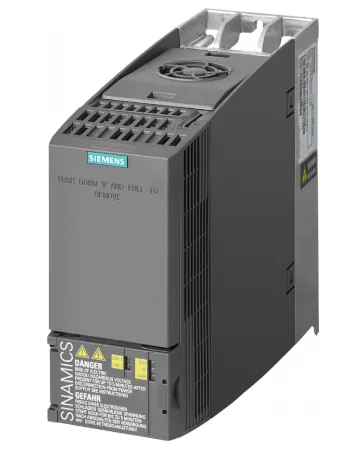

Siemens frekvensomriktare SINAMICS G120C 6SL3210-1KE18-8AP1

SINAMICS G120C RATED POWER 4,0KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ INTEGRATED FILTER CLASS A I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFIBUS-DP PROTECTION: IP20/ UL OPEN TYPE SIZE: FSA 196X73X203

Depth

203 mm

Height

196 mm

Integrated breaking resistance

+

Mains voltage

380 .. 480 V

Max. output at linear load at rated output voltage

3 kW

Max. output at quadratic load at rated output voltage

4 kW

Max. output frequency

550 Hz

Max. output voltage

480 V

Nominal output current I2N

9 A

Number of HW-interfaces RS-232

1

Skicka den gamla enhetens typskylt vid offertförfrågan.
