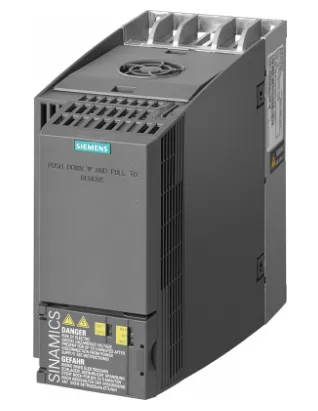

SINAMICS G120C RATED POWER 5,5KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ UNFILTERED I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFIBUS-DP PROTECTION: IP20/ UL OPEN TYPE SIZE: FSB 196X100X203(HXWXD)

Depth

203 mm

Height

196 mm

Integrated breaking resistance

+

Mains voltage

380 .. 480 V

Max. output at linear load at rated output voltage

4 kW

Max. output at quadratic load at rated output voltage

5.5 kW

Max. output frequency

550 Hz

Max. output voltage

480 V

Nominal output current I2N

13 A

Number of HW-interfaces RS-232

1

Skicka den gamla enhetens typskylt vid offertförfrågan.
