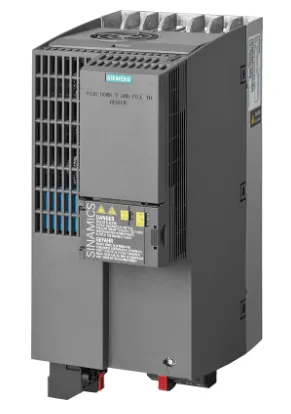

Siemens frekvensomriktare Sinamics G120C 6SL3210-1KE23-8UB1

SINAMICS G120C RATED POWER 18,5KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ UNFILTERED I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: USS/ MODBUS RTU PROTECTION: IP20/ UL OPEN TYPE SIZE: FSC 295X140X203(HXWXD) EX

Depth

203 mm

Height

295 mm

Integrated breaking resistance

+

Mains voltage

380 .. 480 V

Max. output at linear load at rated output voltage

15 kW

Max. output at quadratic load at rated output voltage

18.5 kW

Max. output frequency

550 Hz

Max. output voltage

480 V

Nominal output current I2N

38 A

Number of HW-interfaces RS-232

1

Skicka den gamla enhetens typskylt vid offertförfrågan.
