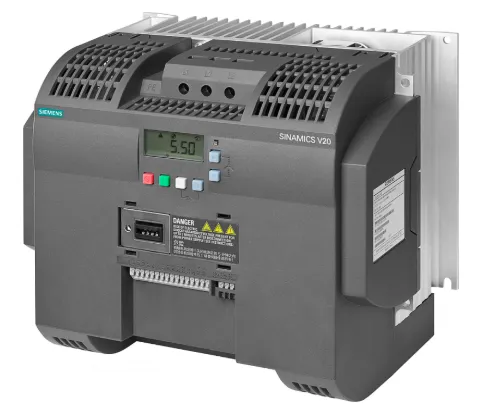

Siemens SINAMICS V20 6SL3210-5BE27-5UV0

SINAMICS V20 380-480V3AC-15/+10% 47-63Hz Rated power 7.5 kW with 150% overload for 60 sec. unfiltered I/O interface: 4 DI, 2 DO, 2 AI, 1 AO Fieldbus: USS/MODBUS RTU with built-in BOP Degree of protection IP20/UL Op Variable: FSD 240x 207x 173 (BxHxD)

Depth

172.5 mm

Height

206.5 mm

Integrated breaking resistance

+

Mains voltage

380 .. 480 V

Max. output at linear load at rated output voltage

7.5 kW

Max. output at quadratic load at rated output voltage

7.5 kW

Max. output frequency

550 Hz

Max. output voltage

480 V

Nominal output current I2N

16.5 A

Number of HW-interfaces RS-232

1

Skicka den gamla enhetens typskylt vid offertförfrågan.
