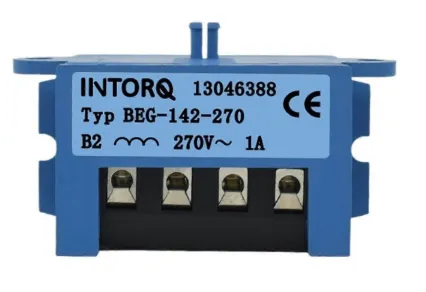

Intorq Bridge Rectifier 4-pole

Application area: Current supply for spring-applied brakes from AC mains (normal excitation).

Example: 205 VDC coil on 230 VAC mains

The rectifiers are protected against overvoltage by input and output varistors.

Technical data:

Manufacturer: Intorq/Kendrion

Type: BEG-142-270

Connection: 4-pole

Max. mains voltage: 270 VAC

Max. DC current: 1,0 A at 60 °C

Max. ambient temperature: 80 °C

Mounting position: vertical
