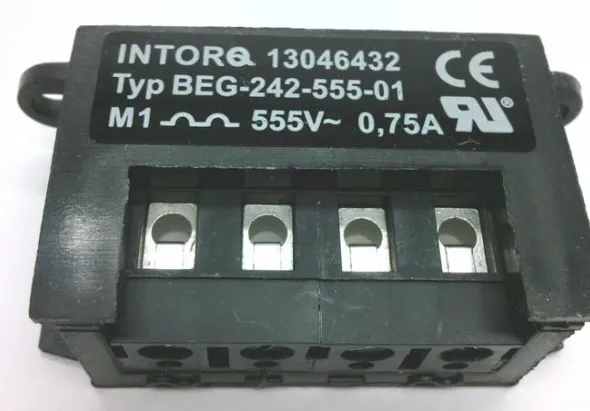

BEG-242-555-01 Intorq Half-wave rectifier 4-pole

Application area: Current supply for spring-applied brakes from AC mains (normal excitation).

Example: 180VDC coil on 400VAC mains

The rectifiers are protected against overvoltage by input and output varistors.

Technical data:

Manufacturer: Kendrion Intorq

Type: BEG-242-555-01

Connection: 4-polig

Max. mains voltage: 555 V~

Max. DC current: 1 A at 60 °C

Max. ambient temperature: 80 °C

Mounting position: vertical
